Introducing the 14HQ901G-BP LG Digital X-ray Detector with Oxide TFT, delivering superior image quality and durability with an IP68 rating. Lightweight and portable, it offers extended operating time and efficient workflow management.

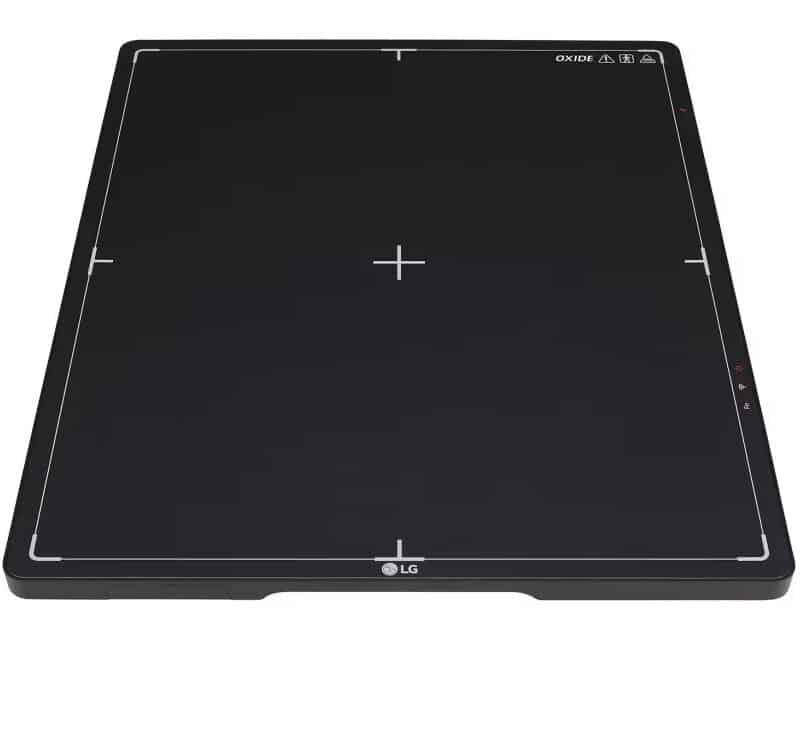

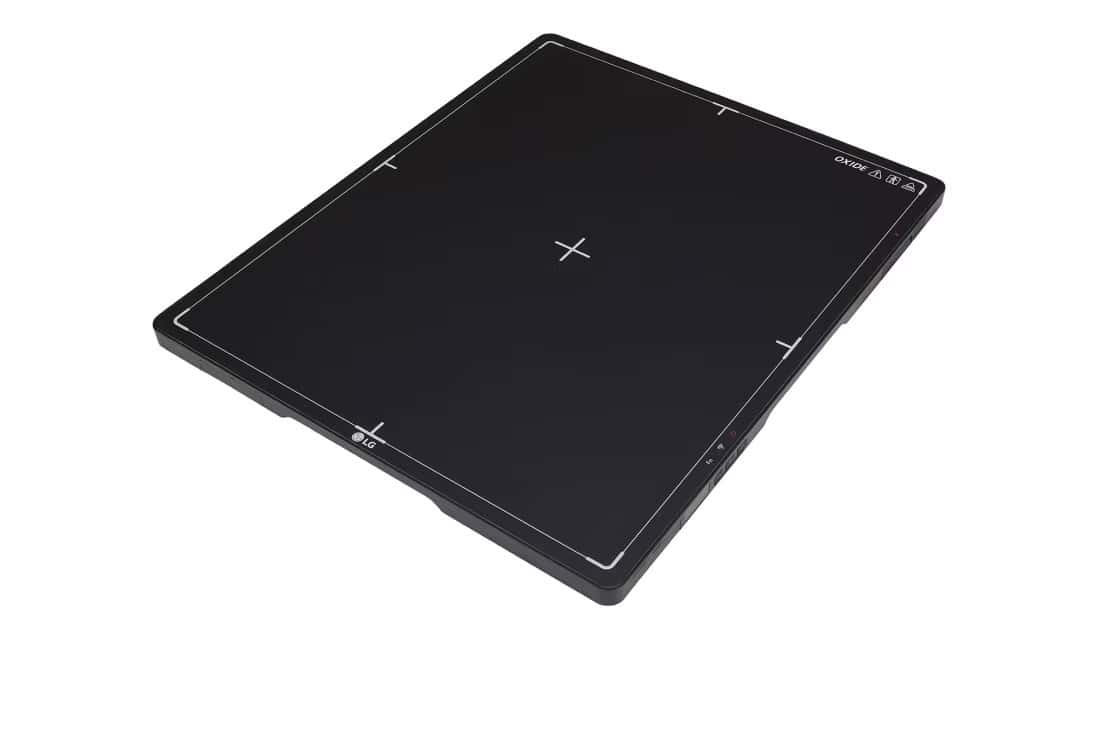

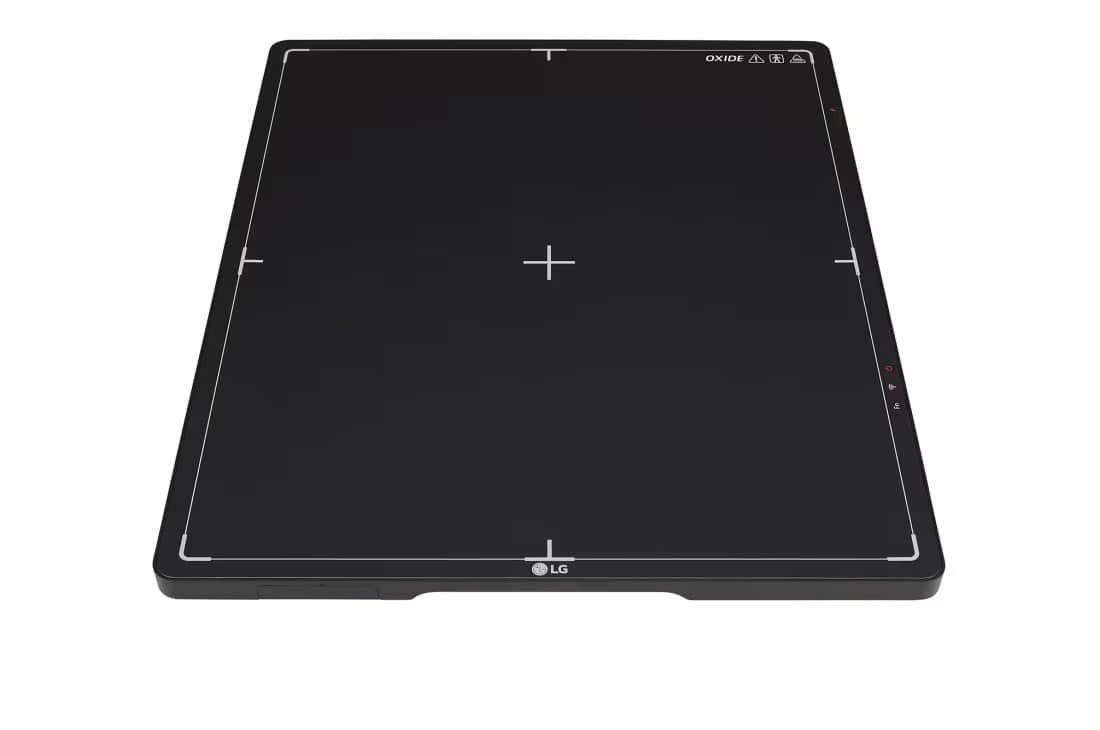

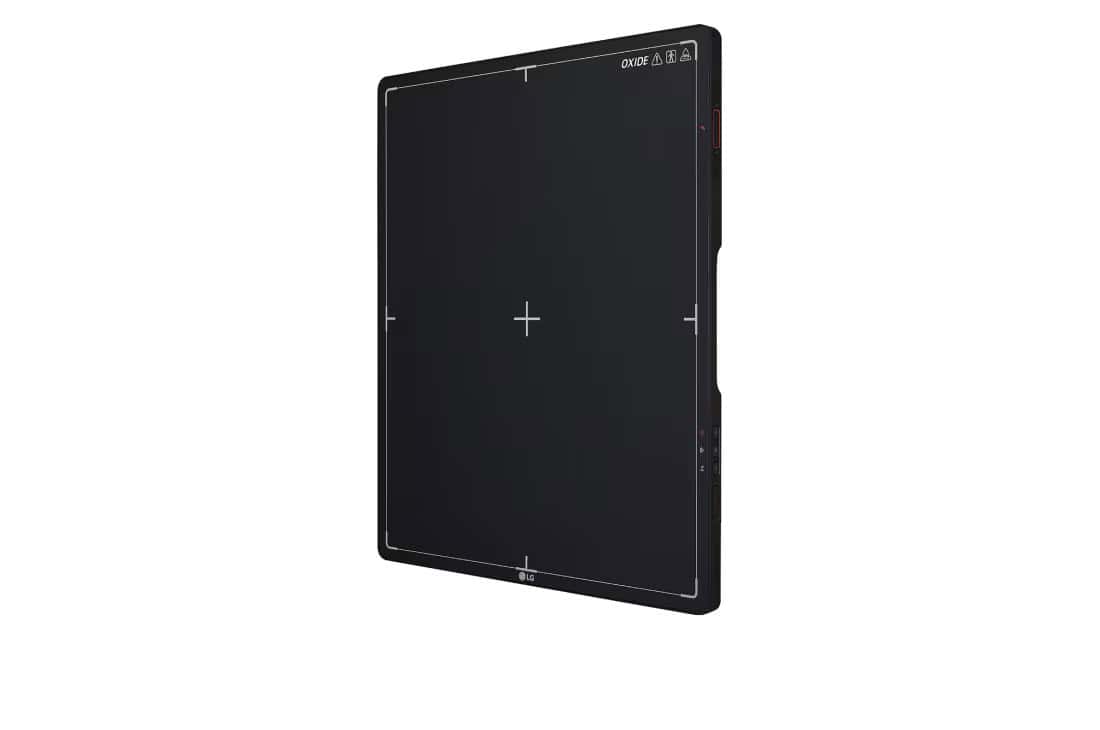

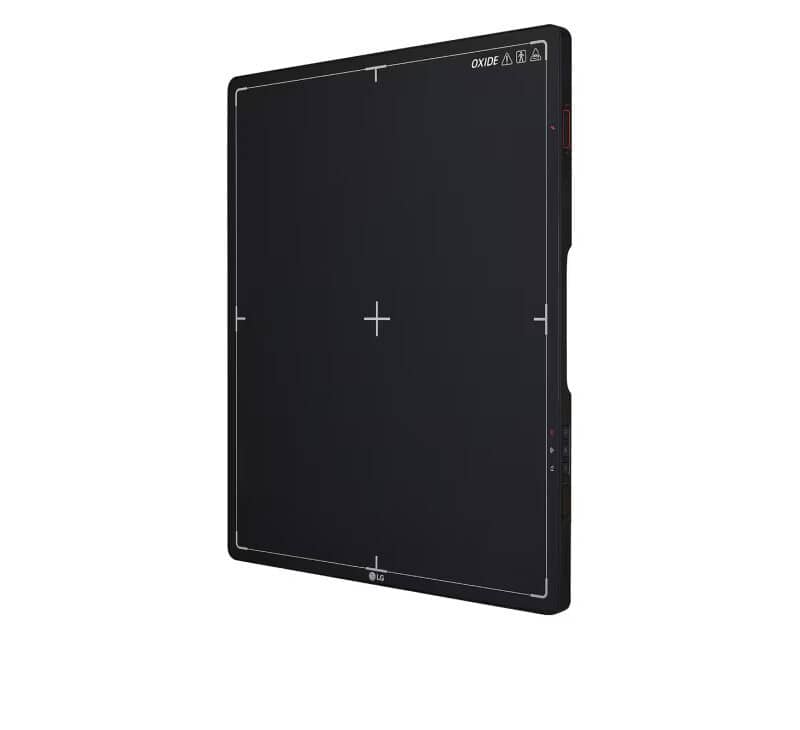

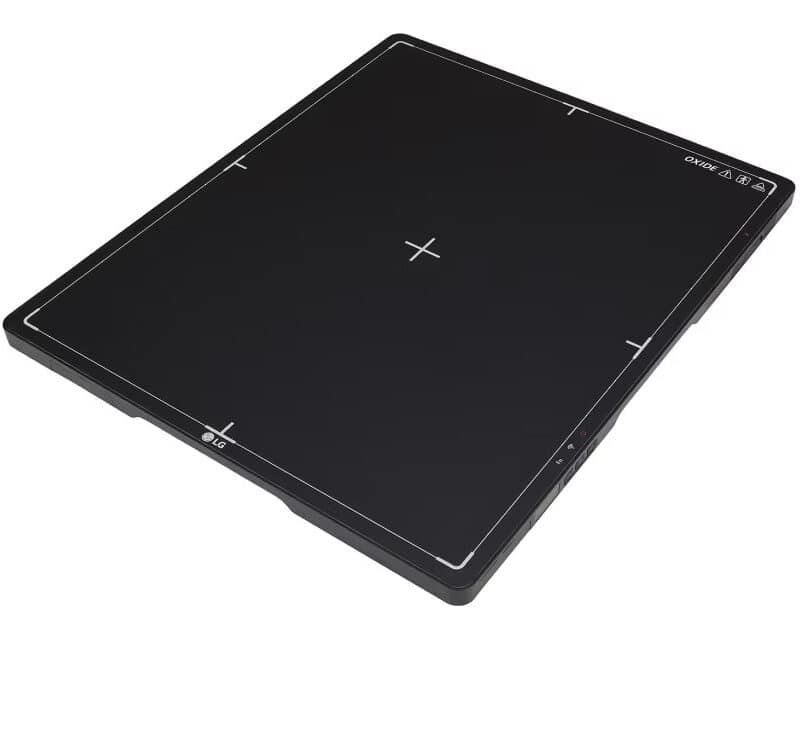

14″ x 17″ Digital X-ray Detector with Oxide TFT
14″ x 17″ Digital X-ray Detector with Oxide TFT
- Excellent DQE with Oxide TFT
- Raw Image in 2s (wireless) & 1.5s (wired)
- AP Mode, Auto Storage on the DXD, Hot Swap
- IP68 : Water Resistant and Dust Tight
- Uniform Load : 400kg/ Point Load : 200kg
Additional information
| Application | General Radiography |
|---|---|
| TFT Type | Oxide |
| Scintillator | Csi |
| Number of Pixels | 3072×2560 |
| Pixel Pitch | 140 |
| TFT Dimensions (WxDxH, mm) | 369 x 442 |
| TFT Active Area (mm) | 358.40 x 430.08 |
| X-ray Sensitive Pixel | 2560×3072 |
| X-ray Sensitive Area (mm) | 430.08 × 358.40 |
| Sensor Protection Plate | Carbon Fiber Plate |
| Input | DC24V/2.1A |
| Power Consumption | Typ. 38W |
| Dimensions (WxDxH, mm) | 384 x 460 x 15.6 |
| Weight (kg) / Incl. Battery (Typ.) | 3.2 kg |
| Maximum Full Load Weight (Uniform Load) | 400kg |
| Maximum Point Load Weight (Point) | 200kg |
| Falling (IEC60601-1 Test Condition) | 1.5m |
| Cycle Time (Wired / Wireless) | 4.5sec / 5sec |
| Full Image (Raw Image) (Typ.) *without window time | Wired 1.5 sec / Wireless 2 sec |
