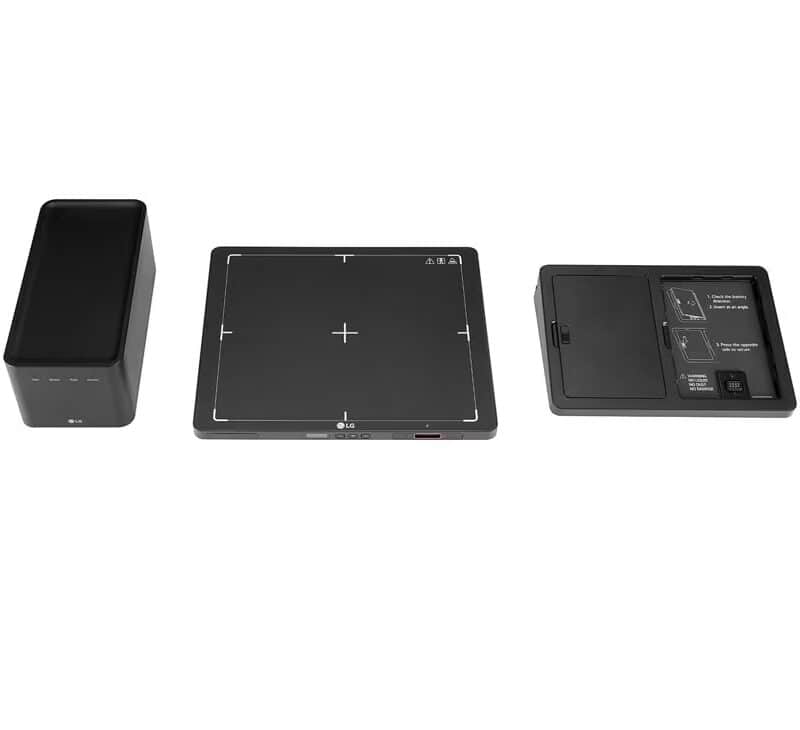

Introducing the 10HQ701G-BP LG Digital X-ray Detector with a-Si TFT technology for precise diagnostics. IP68-rated, supports up to 400kg, and features a lightweight carbon-magnesium body. Hot swap battery, built-in OLED display, and local storage.

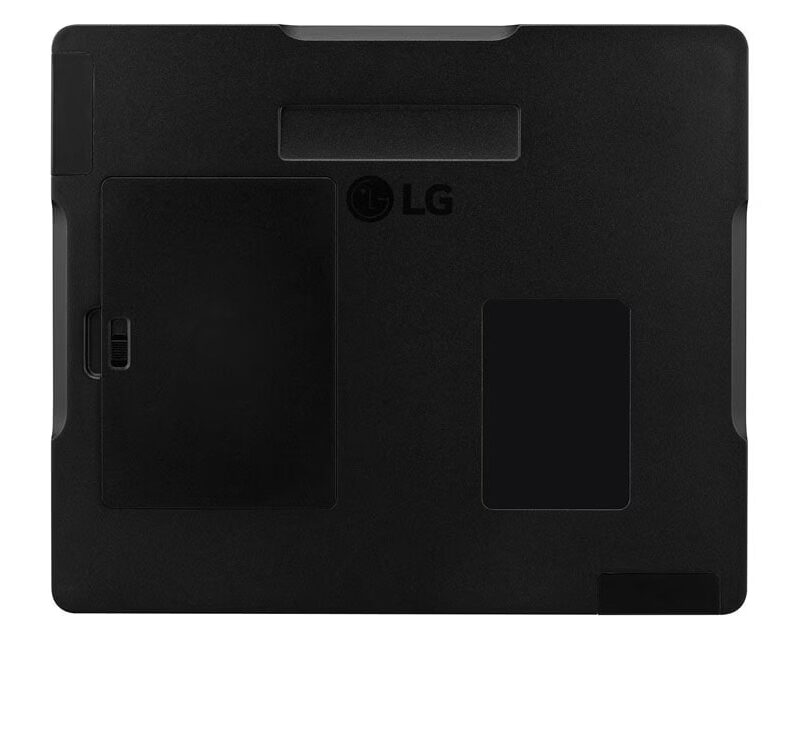

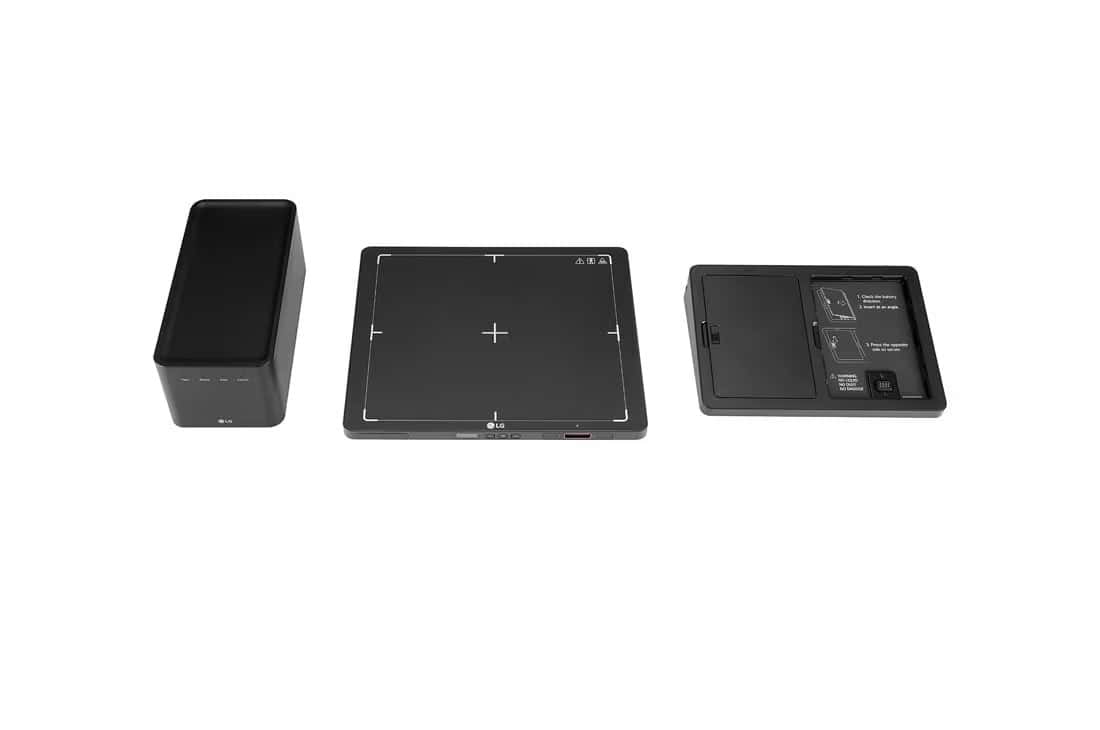

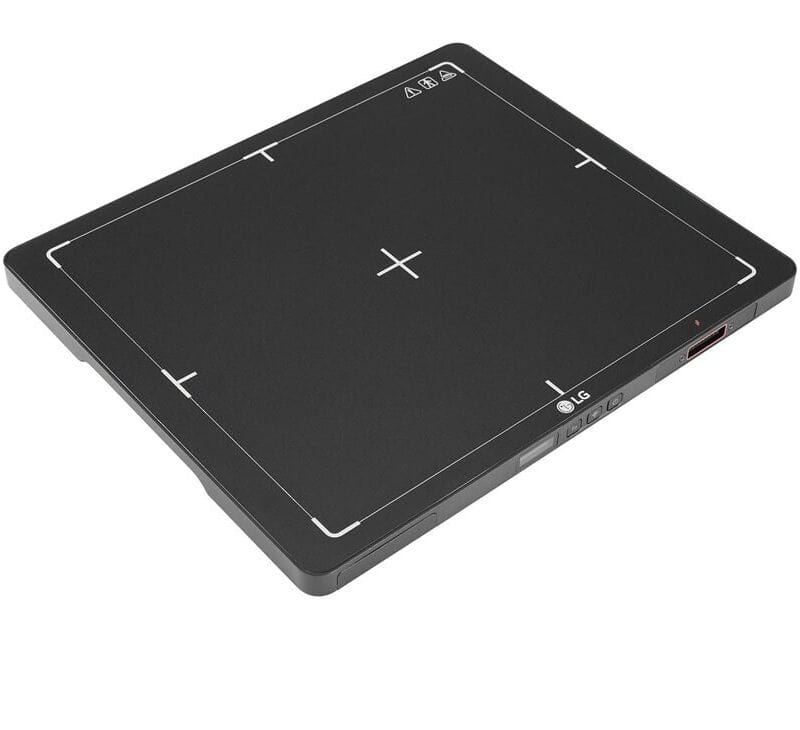

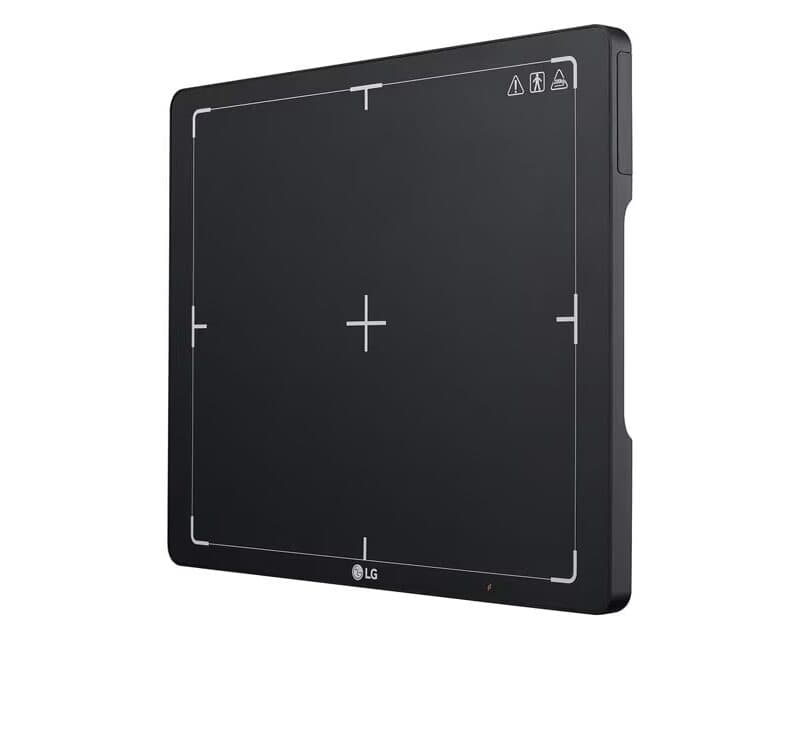

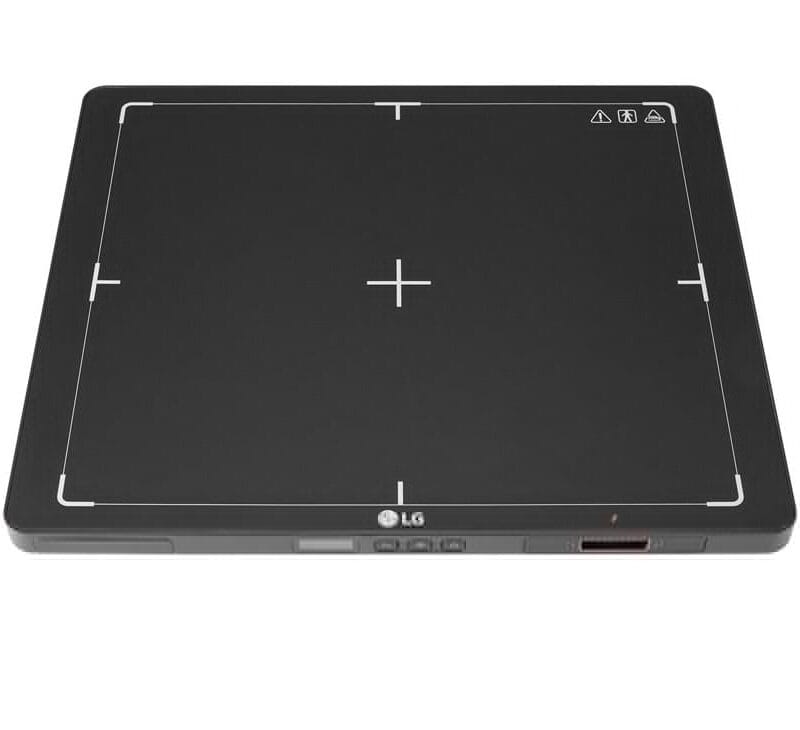

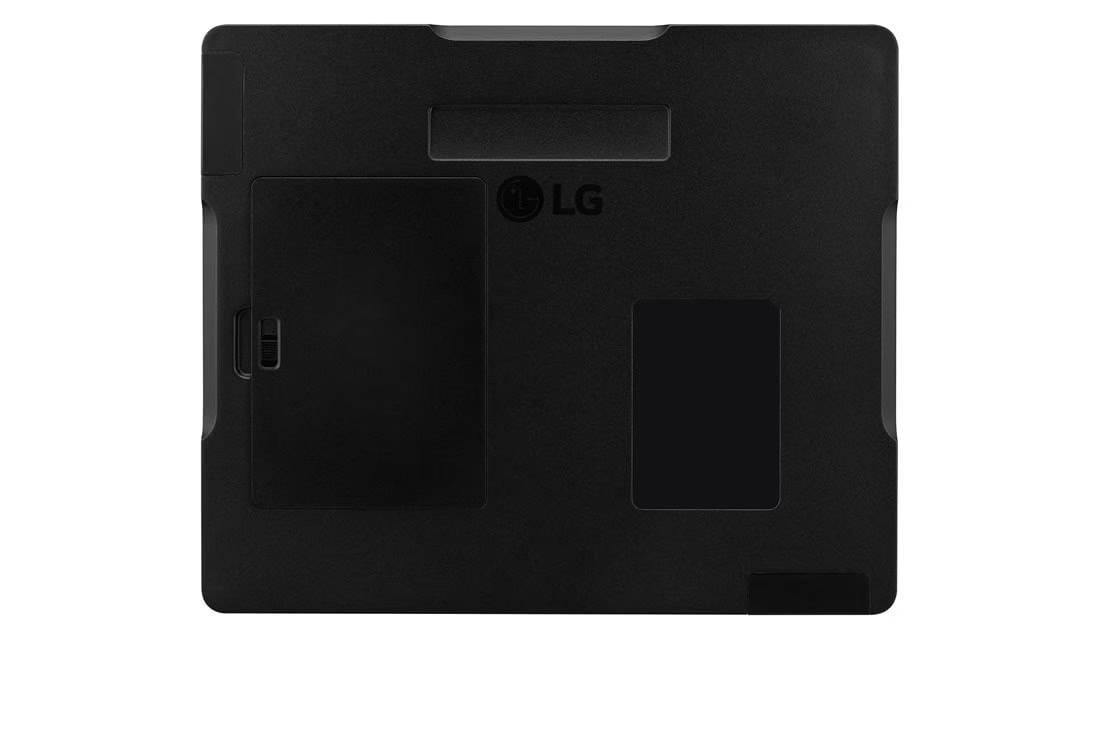

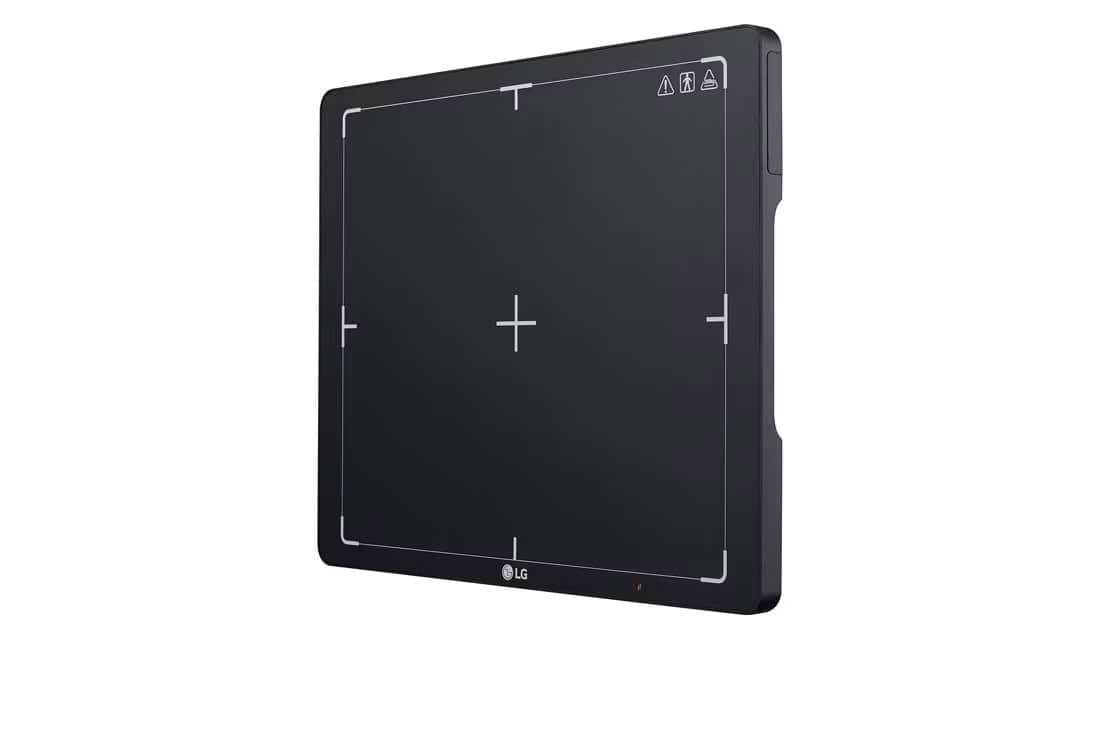

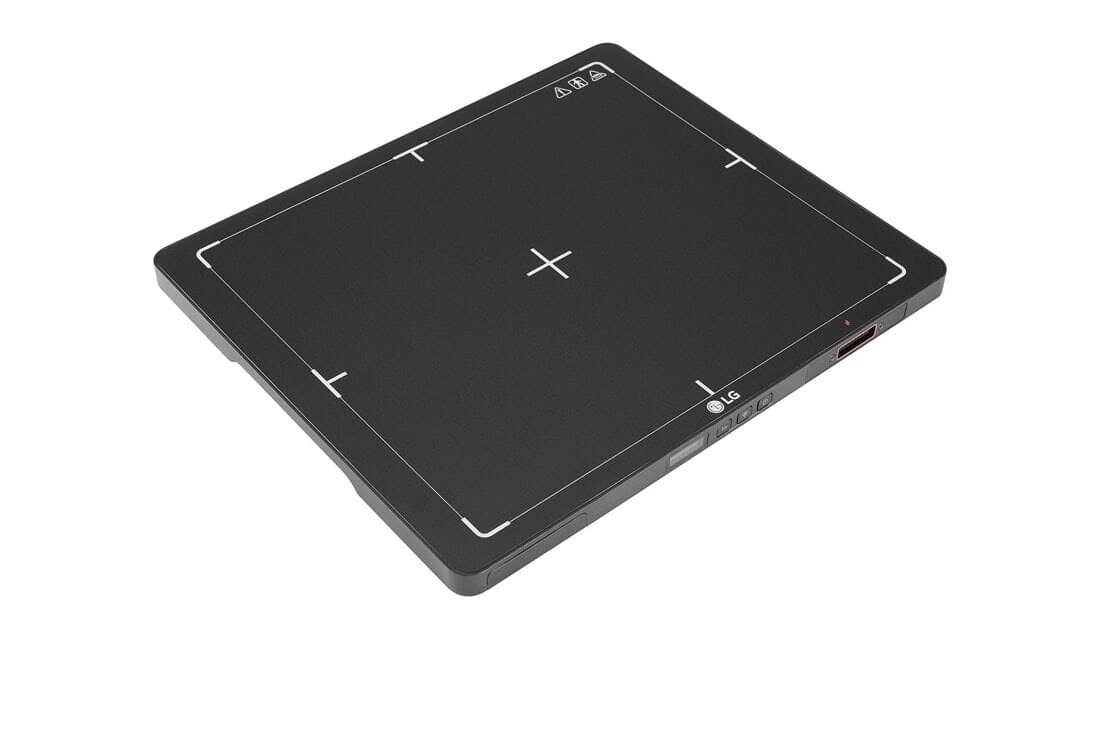

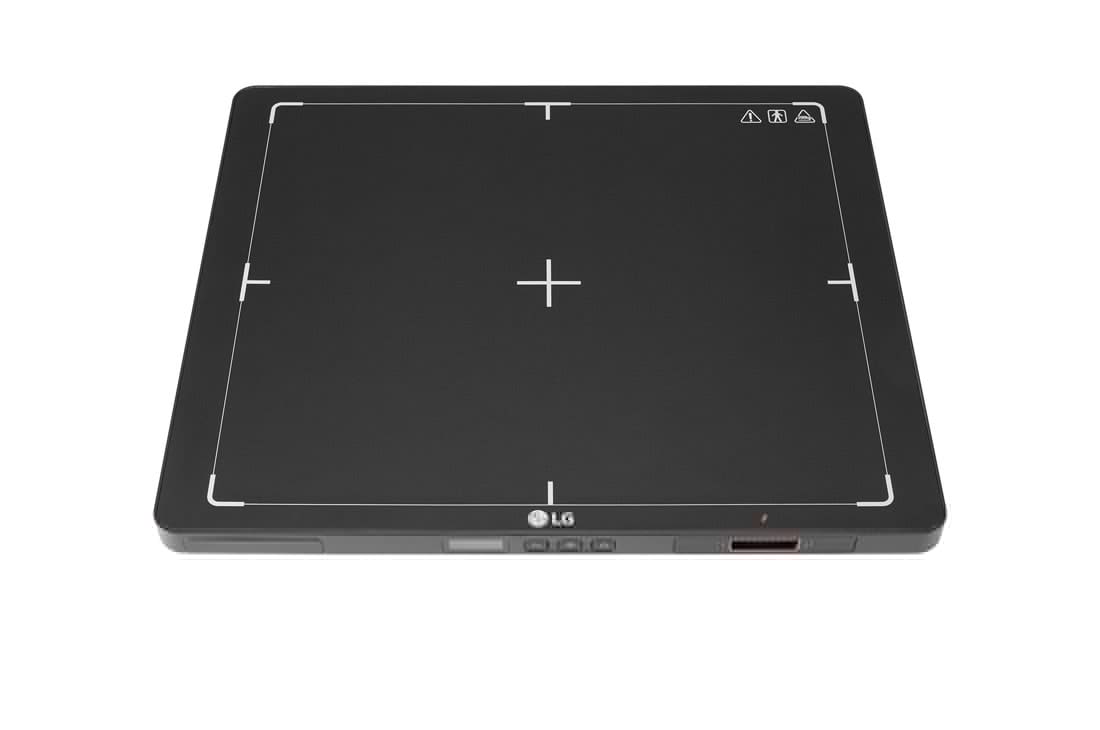

10″ x 12″ Digital X-ray Detector with a-Si TFT
10″ x 12″ Digital X-ray Detector with a-Si TFT
10HQ701G-BP
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless)
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
Additional information
| Application | General Radiography |
|---|---|
| TFT Type | A-Si |
| Scintillator | Csi |
| Number of Pixels | 2048 x 1792 |
| Pixel Pitch | 140 |
| TFT Dimensions (WxDxH, mm) | 307.18 x 277.94 mm |
| TFT Active Area (mm) | 286.72 mm x 250.88 mm |
| X-ray Sensitive Pixel | 2048 x 1792 |
| X-ray Sensitive Area (mm) | 286.72 mm x 250.88 mm |
| Sensor Protection Plate | Carbon Fiber Plate |
| Input | DC24V/2.1A |
| Power Consumption | Typ. 24W |
| Dimensions (WxDxH, mm) | 282 x 333 x 15.6 mm |
| Weight (kg) / Incl. Battery (Typ.) | 1.9 kg |
| Maximum Full Load Weight (Uniform Load) | 400kg |
| Maximum Local Load Weight (Point Load) | 200kg |
| Falling (IEC60601-1 Test Condition) | 1.5m |
| Cycle Time (Wired / Wireless) | 4.5 sec / 5 sec |
